Waveguide frontplate design

While the PCBs are now in production, it’s time to finalize the front plate design. We’re close. Let me show you some of the drafts I am working on.


(Rotation and rotation offset knobs will be yellow, rest black)

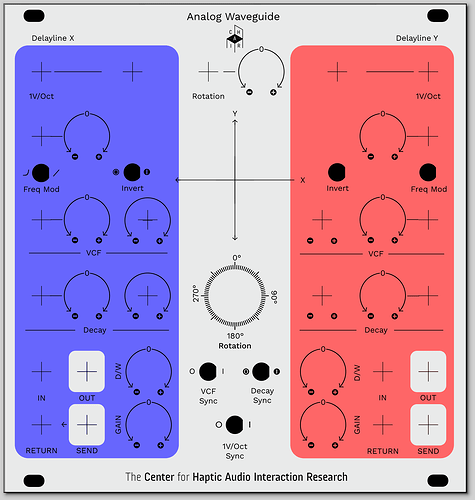

A bright and more colorful variant.

The slim knobs from Thonk/Befaco are a bit slippery, I’ve seen a module which is using a version with more grip (Trimmer toppers from Thonk more specifically but they seem to work on T18 shafts.) What do you think?

Comments welcome.
